60Si2CrA 38Si7 Dia 13mm SKL14 Tension Clip Rail Fastening System

Brand Name : ZHONGYUE
Model Number : Rail Fastening System
Certification : ISO9001:2008
Place of Origin : China
MOQ : 100set
Price : negotiation
Supply Ability : 500,000pcs per month
Delivery Time : 10 working days after received your payment
Packaging Details : according to clients' requirement
Material : Q235(main) 60Si2MnA, 60Si2CrA, 55Si2Mn, 38Si7
Application : railway construction
Main Surface Treatment : plain (oiled), Oxide black, color painting
Name : railway project railway fastening system SKL rail system
Drawing : required
Contact Now

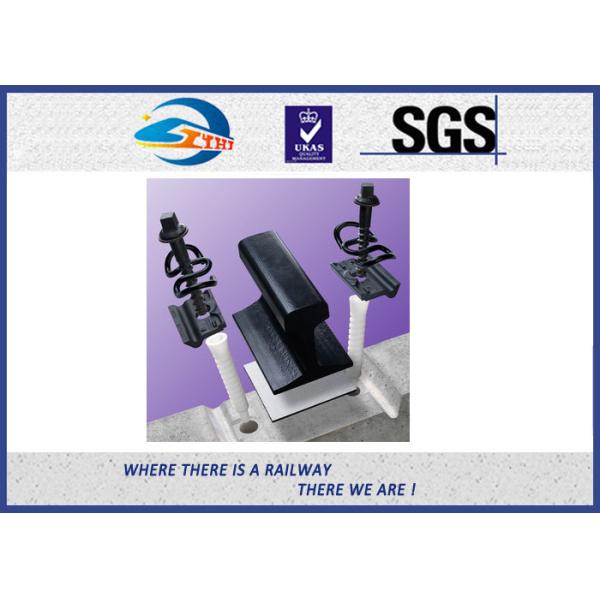

ZhongYue railway project railway fastening system SKL rail system


The fist rail fastening system is firstly developed in Sweden. This rail fastening system is widely used in the railroad in South Africa, Zimbabwe, Botswana, Swaziland and Namibia. In addition, the railroad fastener is extensively employed in South America and Australia. The fist rail fastening system comprises of spring steel clip, rail pad, and insulated retaining pin. The components for the rail fastening device are manufactured according to ISO 9001-2008 standard.


Technical Parameters

Part nameTypeMaterialFinishRemark
SKL14 tension clipDia. 13mm60Si2CrA, 38Si7Plain oiled, color painting, or the other required ones.Hardness: 42-47HRC
Fatigue test: When the clip spring deflection reaches 9.1mm and the swing deflection is 1.42mm, the fatigue life will be 5 millions cycles without breaking.
Standard: DIN17221, GB/T1222
Ss35 screw spikeM24×150mm
M24 ×160mm
M24×180mm
Grade 4.6: Q235
Grade 5.6: 35#
Grade 8.8: 45#
Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardizedStandard: ISO898-1, UIC864-1 and NF F500-50
Plain washerUls7Q235Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardizedStandard: EN10025, EN10139
Plastic dowelFor different sizes of screw spikeHDPE, Reinforced Nylon 66 (PA66)Black, blue, yellow, green or other colorFor insert into concrete sleeper
Guide plateUIC54, UIC60, 50kg rail, 60kg rail, and other sizes as orderedReinforced Nylon 66 (PA66)Black, blue, yellow, green or other colorDifferent designs are available.
Rail padUIC54,UIC60, and size as orderedEVA, or rubberBlack, blue, yellow, green or other colorDifferent designs are available.

KPO Clamp Rail Fastening System


Technical Parameters

Part nameTypeMaterialFinishRemark
KPO clipKPO3, KPO6, KPO9Q235Plain oiledStandard: DIN5906
HS boltHS26, HS32Grade4.6: Q235
Grade5.6: 35#
Grade8.8: 45#
Plain oiled, black oxide, galvanized, hot dip galvanizedDiameter: 22mm or 24mm.
Length: 55mm, 65mm, 75mm, 90mm
Standard: UIC864-2
Hex nutAs orderedGrade 5: 35#
Grade 8: 45#
Plain oiled, black oxide, galvanized, hot dip galvanizedStandard: DIN985
Double coil spring washerAs ordered65MnPlain oiled, black oxide, galvanized, hot dip galvanizedStandard: UIC864-3
screw spikeM24×150mm
M24 ×160mm
M24 ×180mm
or other length as ordered
Grade 4.6: Q235
Grade 5.6: 35#
Grade 8.8: 45#
Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized.Standard: ISO898-1, UIC864-1 and NF F500-50
Base plateUIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered sizeCasting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steelPlain oiled

Standard: UIC864-6



Advantage:
We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.


Order Hints:
MOQ: based on your product
Delivery time:Within 30days after order confirmed
Shipment: sea freight
Payment term: T/T 30% deposit, balance before shipment; LC
